Third Brake Light Backup Camera for Mercedes Sprinter (2007-2018)

Third Brake Light Backup Camera for Mercedes Sprinter (2007-2018) Summary:

Drivers who own a Mercedes Sprinter Van can now automatically adjust the dangerous driving conditions by installing the Mercedes Sprinter third brake light backup camera onto their van. What sets this brake light apart from the rest? First and foremost, it is designed for Sprinter Vans, meaning it will affix perfectly, is easy to adjust, and will look the part on your Mercedes vehicle. Some additional features of this brake light backup camera for Mercedes Sprinter offers which sets it apart from competitors include: 120 degree adjustable, ultra-wide viewing angle, exceptional image quality at night, given the 6-infrared red lights and It is 100% waterproof and fits into the brake lighting house. Your new brake light is also water and weather-proof, so it is designed for any type of road condition, driving environment, or location you plan on driving your Sprinter Van around in. Using a top CMOS lens and IR night vision, this brake light backup camera is strong, reliable, and will provide the additional guiding light you need, regardless of the conditions you’re driving in. It is shock-proof, so even driving through bumpy conditions won’t cause the light to move or shut off. Wide peripheral viewing-angles also give you a full range of motion, regardless of where you are backing out of, and what roads you are backing out onto. Crisp resolution and image quality also give you a clear indication of what lies behind you, and what potential dangers you’re coming towards, once your new brake light camera is installed onto your Mercedes-Sprinter. And, it is compatible with newer 2007 to 2018 models, so regardless of the van you own in the Mercedes-Sprinter series, you can install the third brake light backup camera onto it seamlessly.

Highlights of Self Standing Monitor:

• Can be mounted on the roof or on the dash.
• Including 2 mounting options.
• Includes grid lines for a safer backup experience.
• High-quality 800 x 480 resolution.
• Monitor integrates a 7” display.

Highlights of 7 inch Clip-on Monitor:

• Attach to your existing rear view mirror with pressure clips, which will not take up room on your dash.
• It’s a monitor only, can’t use it as regular rear view mirror.
• Includes grid lines for a safer backup experience.
• High-quality 800 x 480 resolution.
• Monitor integrates a 7” display.

Highlights of 5 inch Clip-on Mirror Monitor:

• Attach to your existing rear view mirror with pressure clips, which will not take up room on your dash.
• Ultra reflective mirror functions both as a mirror and a monitor display.
• Includes grid lines for a safer backup experience.
• High-quality 480 x 272 resolution.
• Monitor integrates a 5” display.

Highlights of Replacement Mirror Monitor:

• Works flawlessly with this backup camera.
• Ultra reflective mirror functions both as a mirror and a monitor display.
• Includes grid lines for a safer backup experience.
• Mounted with 2 ball joints for more flexible adjustments.
• High-quality 480 x 272 resolution.
• Monitor integrates a 4.3” display.

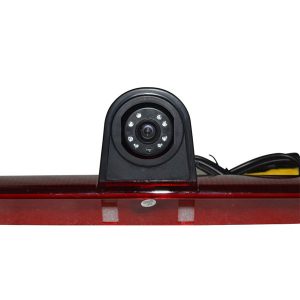

Highlights of Our third brake light backup Camera:

• OEM designed for a factory-like fit.
• Quickly replaces your existing rear light.
• Night vision capability helps maintain your safety at night.
• IP68 waterproof rating means the camera is completely protected from dust, rain, and water splashes.
• 120° wide viewing angle provides you with a wider and more detailed backup view.

Frequently Asked Questions of Third Brake Light Backup Camera for Mercedes Sprinter:

1. Does this backup camera system fit my Sprinter van ?
Designed specifically for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Mercedes Sprinter vans.

2. Does it offer parking grid lines ?
Yes. If you’ve driven a vehicle with distance grid parking assistance before, then you should know how valuable this feature is in any backup system. Our backup camera package features distance grid lines and allows you to either switch it On or Off. Although you could, if you wanted, but you don’t even need to make any adjustment to the grid lines in this system.

3. This rear view camera is waterproof ?
Yes, it is 100% waterproof with IP68 rating. The IP or Ingress Protection rating is used to classify the degree of protection of an electric device against solids and liquids. The first number after the ‘IP’ refers to protection against solids, while the second number refers to its protection against liquids. This guarantees that rain, water splashes, water jets, and dusty roads, will have absolutely no adverse effect on the camera.

4. What is the viewing angle of this reverse camera ?
Our third brake light backup camera for Mercedes Sprinter features a 120° viewing angle, you can be sure to pick up every little detail or movement behind your truck. A 120°-wide camera lens is currently the widest and best angle that you can get without visual distortions to the imagery behind you and your truck. Viewing angle refers to the amount of detail that a camera can pick up at a fixed position to a scene. This means that a camera with a wider viewing angle picks up more information from a scene than a camera with a narrower viewing angle. A wide viewing angle is important in backup cameras because it enables the driver to take in as much detail as possible.

5. This backup camera has night vision ?
Our brake light backup camera offers 6 infrared lights to provide great night vision.

Backup Camera Specification :

• Image sensor :top CMOS
• Resolution :756(H) X 504(V)
• Connector :RCA
• TV line :600TV lines
• TV System :PAL/NTSC compatible
• Waterproof rating :IP68
• Lens :1.7mm
• Viewing angle :120°
• Power voltage :DC12V-24V
• Operation Temp. :-20℃~+70℃
• White Balance :Auto

Self Standing Monitor Specification :

• Monitor size :7 inch
• Monitor type : self standing with 2 mounting options
• Resolution :800 x 480
• TV System :PAL/NTSC compatible
• Weight :700g
• Video input : 2 channels
• Power :DC12V-DC24V
• Brightness :400cd/㎡

7 inch Clip-on Monitor Specification :

• Monitor size :7 inch
• Monitor type :clip-on
• Resolution :800X480
• TV System :PAL/NTSC compatible
• Weight :500g
• Video input : 2 channels
• Power :DC12V
• Brightness :400cd/㎡

5 inch Clip-on Mirror Monitor Specification :

• Monitor size :5 inch
• Monitor type : Clip-on
• Resolution :480 x 272
• TV System :PAL/NTSC compatible
• Weight :400g
• Video input : 2 channels
• Power :DC12V

Replacement Rear View Mirror Monitor Specification :

• Monitor size :4.3 inch
• Monitor type :OEM replacement mirror monitor
• Resolution :480 x 272
• TV System :PAL/NTSC compatible
• Weight :600g
• Video input : 1 channel
• Power :DC12V

In the Box :

• 1 X Third Brake Light Backup Camera for Mercedes Sprinter
• 1 X self Standing Monitor ( if you choose self standing monitor)
• 1 X 7 inch Clip-on Monitor ( if you choose 7 inch clip-on monitor)
• 1 X 5 inch Clip-on Mirror Monitor ( if you choose 5 inch clip-on mirror monitor)
• 1 X 4.3 inch Replacement Rear View Mirror Monitor ( if you choose replacement mirror monitor)
• 1 X 10 Meters Extension Cables
• 1 X Power Connection Cable
• All necessary Installation kits
• 1 X Manual
