OEM Rear View Reverse Camera for Suzuki SX4 / Suzuki Baleno

Reverse Camera for Suzuki SX4 / Suzuki Baleno Summary:

This Reverse Camera for Suzuki SX4 is designed to replace your existing rear handle above license plate, while the rear view mirror monitor (if you choose this monitor) is also designed to replace your existing rear view mirror. Both parts are very well designed and fit so well into car, that they are barely noticeable. Backup your Suzuki SX4 safely and comfortably with this complete backup camera and rear view mirror monitor package. Unlike other aftermarket backup cameras or monitor systems, this one works straight out of the box in your Suzuki SX4. Combining an OEM backup camera, with a replacement rear view mirror monitor, to create an easy to install and use reverse camera system. It offers a full color and super-bright display, night vision ability, and features parking grid lines. You can use it between a simple rear view mirror and a backup monitor. This package integrates a 480 x 272-pixel display, which measures 4.3 inches across, in a 16:9 aspect ratio. So much image detail in such a little space shows you how much detail this monitor displays. The super sharp imagery of this display allows you to pick up every little piece of detail, while the ultra-reflective surface of the entire rear view mirror monitor means you still have a fully functional rear view mirror to rely on.

Highlights of Our Replacement Mirror Monitor:

• Works flawlessly with the rear view camera.
• Ultra reflective mirror functions both as a mirror and a monitor display.
• Includes grid lines for a safer backup experience.
• Mounted with 2 ball joints for more flexible adjustments.
• High-quality 480 x 272 resolution.
• Monitor integrates a 4.3” display.

Highlights of Our Clip-on Mirror Monitor:

• Attach to your existing rear view mirror with pressure clips, which will not take up room on your dash.
• Ultra reflective mirror functions both as a mirror and a monitor display.
• Includes grid lines for a safer backup experience.
• High-quality 480 x 272 resolution.
• Monitor integrates a 5” display.

Highlights of Our Foldable Monitor:

• Flip up monitor folds down out of view when not in use.
• Crystal clear digital display shows footages in full color.
• Small and compact 4.3-inch LCD monitor.

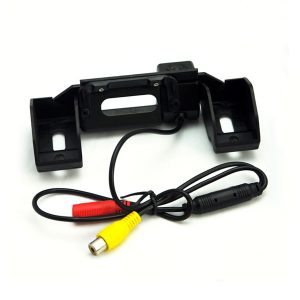

Highlights of Our OEM Reverse Camera:

• OEM designed for a factory-like fit.
• Quickly replaces your existing rear light.
• Night vision capability helps maintain your safety at night.
• IP68 waterproof rating means the camera is completely protected from dust, rain, and water splashes.
• 170° wide viewing angle provides you with a wider and more detailed backup view.

Frequently Asked Questions of Reverse Camera for Suzuki SX4 :

1. How to wire this OEM backup camera system ?
Following is our wiring diagram for this OEM backup camera system.

2. Does this backup camera system fit my car ?
Designed specifically for Suzuki SX4. We highly recommend you to check the dimension of your existing rear handle before ordering, if it’s close to or same with our backup camera size, then you can buy it with confidence.

3. Does it offer parking grid lines ?
Yes. If you’ve driven a vehicle with distance grid parking assistance before, then you should know how valuable this feature is in any backup system. Our backup camera package features distance grid lines and allows you to either switch it On or Off. Although you could, if you wanted, but you don’t even need to make any adjustment to the grid lines in this system.

4. This OEM rear view camera is waterproof ?
Yes, it is 100% waterproof with IP68 rating. The IP or Ingress Protection rating is used to classify the degree of protection of an electric device against solids and liquids. The first number after the ‘IP’ refers to protection against solids, while the second number refers to its protection against liquids. This guarantees that rain, water splashes, water jets, and dusty roads, will have absolutely no adverse effect on the camera.

5. What is the viewing angle of this reverse camera ?
Our Reverse Camera for Suzuki SX4 features a 170° viewing angle, you can be sure to pick up every little detail or movement behind your truck. A 170°-wide camera lens is currently the widest and best angle that you can get without visual distortions to the imagery behind you and your truck. Viewing angle refers to the amount of detail that a camera can pick up at a fixed position to a scene. This means that a camera with a wider viewing angle picks up more information from a scene than a camera with a narrower viewing angle. A wide viewing angle is important in backup cameras because it enables the driver to take in as much detail as possible.

6. This backup camera has night vision ?
Our OEM rear view camera also offers an impressive feature of night vision capability from as little as a 0.5 Lux illumination. Lux is a measure of light intensity, just like Lumens also is. One Lux is the amount of light falling on one square meter, from one candle that is one meter away. A 0.5 Lux rating, therefore, means that this camera requires less light than is produced by a single candle in order to pick up different objects in the environment and to properly display the scene at night.

Backup Camera Specification :

• Image sensor :top CMOS
• Resolution :756(H) X 504(V)
• TV line :600TV lines
• TV System :PAL/NTSC compatible
• Waterproof rating :IP68
• Lens :1.7mm
• Viewing angle :170°
• Power voltage :DC12V-24V
• Operation Temp. :-20℃~+70℃
• White Balance :Auto

Replacement Rear View Mirror Monitor Specification :

• Monitor size :4.3 inch
• Monitor type :OEM replacement mirror monitor
• Resolution :480 x 272
• TV System :PAL/NTSC compatible
• Weight :600g
• Video input : 2 channels
• Power :DC12V
• Brightness :400cd/㎡

Clip-on Rear View Mirror Monitor Specification :

• Monitor size :5 inch
• Monitor type : Clip-on
• Resolution :480 x 272
• TV System :PAL/NTSC compatible
• Weight :400g
• Video input : 2 channels
• Power :DC12V
• Brightness :400cd/㎡

Foldable Monitor Specification :

• Monitor size :4.3 inch
• Monitor type : self standing foldable monitor
• Resolution :480 x 272
• TV System :PAL/NTSC compatible
• Weight :300g
• Video input : 2 channels
• Power :DC12V
• Brightness :400cd/㎡

In the Box :

• 1 X Reverse Camera for Suzuki SX4
• 1 X 4.3 inch Replacement Rear View Mirror Monitor ( if you choose replacement mirror monitor)
• 1 X 5 inch Clip-on Rear View Mirror Monitor ( if you choose clip-on mirror monitor)
• 1 X 4.3 inch Foldable Monitor ( if you choose foldable monitor)
• 1 X 6 Meters Extension Cables (RCA connector)
• 1 X Power Connection Cable
• All necessary Installation kits
• 1 X Manual
