License Plate Light Backup Camera for Ford Transit Connect (2010-2018)

Ford Transit Connect Backup Camera Summary:

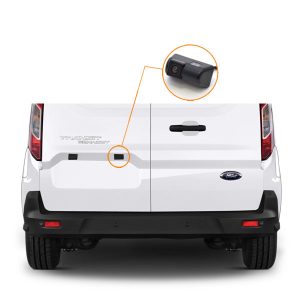

This Ford Transit Connect backup camera is designed to replace your existing rear light above license plate, while the rear view mirror monitor is also designed to replace your existing rear view mirror. Both parts are very well designed and fit so well into Transit Connect, that they are barely noticeable. Backup your Ford Transit Connect safely and comfortably with this complete backup camera and rear view mirror monitor package. Unlike other aftermarket backup cameras or monitor systems, this one works straight out of the box in your Ford Transit Connect. Combining an OEM backup camera, with a replacement rear view mirror monitor, to create an easy to install and use Ford Transit Connect backup camera system. It offers a full color and super-bright display, night vision ability, and features parking grid lines. You can use it between a simple rear view mirror and a backup monitor. This package integrates a 480 x 272-pixel display, which measures 4.3 inches across, in a 16:9 aspect ratio. So much image detail in such a little space shows you how much detail this monitor displays. The super sharp imagery of this display allows you to pick up every little piece of detail, while the ultra-reflective surface of the entire rear view mirror monitor means you still have a fully functional rear view mirror to rely on.

Highlights of Replacement Mirror Monitor:

• Works flawlessly with the rear view camera and your Transit Connect Vehicles.
• Ultra reflective mirror functions both as a mirror and a monitor display.
• Includes grid lines for a safer backup experience.
• Mounted with 2 ball joints for more flexible adjustments.
• High-quality 480 x 272 resolution.
• Monitor integrates a 4.3” display.

Highlights of 5 inch Clip-on Mirror Monitor:

• Attach to your existing rear view mirror with pressure clips, which will not take up room on your dash.
• Ultra reflective mirror functions both as a mirror and a monitor display.
• Includes grid lines for a safer backup experience.
• High-quality 480 x 272 resolution.
• Monitor integrates a 5” display.

Highlights of 7 inch Clip-on Monitor:

• Attach to your existing rear view mirror with pressure clips, which will not take up room on your dash.
• It’s a monitor only, can’t use it as regular rear view mirror.
• Includes grid lines for a safer backup experience.
• High-quality 800 x 480 resolution.
• Monitor integrates a 7” display.

Highlights of Self Standing Monitor:

• Can be mounted on the roof or on the dash.
• Including 2 mounting options.
• Includes grid lines for a safer backup experience.
• High-quality 800 x 480 resolution.
• Monitor integrates a 7” display.

Highlights of Our Ford Transit Connect Backup Camera:

• OEM designed for a factory-like fit.
• Quickly replaces your existing rear light.
• Night vision capability helps maintain your safety at night.
• IP68 waterproof rating means the camera is completely protected from dust, rain, and water splashes.
• 170° wide viewing angle provides you with a wider and more detailed backup view.

Frequently Asked Questions for Ford Transit Connect Backup Camera System:

1. Can I wire this Ford Transit Connect backup camera always be on ?
Yes, it is OK. It depends on the wiring of power source. If you use the backup light power source it will only come on in reverse (when the backup lights are on). If you use a full time source such as 12V accessory socket (cigarette lighter) it will be on whenever there is power there.

2. Does this OEM backup camera system fit my Ford Transit Connect ?
It fits 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Ford Transit Connect models.

3. Does it offer parking grid lines ?
Yes. If you’ve driven a vehicle with distance grid parking assistance before, then you should know how valuable this feature is in any backup system. Our backup camera package features distance grid lines and allows you to either switch it On or Off. Although you could, if you wanted, but you don’t even need to make any adjustment to the grid lines in this system.

4. This OEM rear view camera is waterproof ?
Yes, it is 100% waterproof with IP68 rating. The IP or Ingress Protection rating is used to classify the degree of protection of an electric device against solids and liquids. The first number after the ‘IP’ refers to protection against solids, while the second number refers to its protection against liquids. This guarantees that rain, water splashes, water jets, and dusty roads, will have absolutely no adverse effect on the camera.

5. What is the viewing angle of this reverse camera ?
Our Ford Transit Connect backup camera features a 170° viewing angle, you can be sure to pick up every little detail or movement behind your truck. A 170°-wide camera lens is currently the widest and best angle that you can get without visual distortions to the imagery behind you and your truck. Viewing angle refers to the amount of detail that a camera can pick up at a fixed position to a scene. This means that a camera with a wider viewing angle picks up more information from a scene than a camera with a narrower viewing angle. A wide viewing angle is important in backup cameras because it enables the driver to take in as much detail as possible.

6. This Ford Transit Connect backup camera has night vision ?
Our Ford Transit Connect OEM rear view camera also offers an impressive feature of night vision capability from as little as a 0.5 Lux illumination. Lux is a measure of light intensity, just like Lumens also is. One Lux is the amount of light falling on one square meter, from one candle that is one meter away. A 0.5 Lux rating, therefore, means that this camera requires less light than is produced by a single candle in order to pick up different objects in the environment and to properly display the scene at night.

Ford Transit Connect Backup Camera Specification :

• Image sensor :CCD
• Resolution :756(H) X 504(V)
• TV line :600TV lines
• TV System :PAL/NTSC compatible
• Waterproof rating :IP68
• Lens :1.7mm
• Viewing angle :170°
• Power voltage :DC12V-24V
• Operation Temp. :-20℃~+70℃
• White Balance :Auto

Replacement Mirror Monitor Specification :

• Monitor size :4.3 inch
• Monitor type :OEM replacement mirror monitor
• Resolution :480 x 272
• TV System :PAL/NTSC compatible
• Weight :600g
• Video input : 1 channel
• Power :DC12V
• Brightness :400cd/㎡

5 inch Clip-on Mirror Monitor Specification :

• Monitor size :5 inch
• Monitor type : Clip-on
• Resolution :480 x 272
• TV System :PAL/NTSC compatible
• Weight :400g
• Video input : 2 channels
• Power :DC12V

7 inch Clip-on Monitor Specification :

• Monitor size :7 inch
• Monitor type :clip-on
• Resolution :800X480
• TV System :PAL/NTSC compatible
• Weight :500g
• Video input : 2 channels
• Power :DC12V
• Brightness :400cd/㎡

Self Standing Monitor Specification :

• Monitor size :7 inch
• Monitor type : self standing with 2 mounting options
• Resolution :800 x 480
• TV System :PAL/NTSC compatible
• Weight :700g
• Video input : 2 channels
• Power :DC12V-DC24V
• Brightness :400cd/㎡

In the Box :

• 1 X OEM Backup Camera for Ford Transit Connect
• 1 X self Standing Monitor ( if you choose self standing monitor)
• 1 X 7 inch Clip-on Monitor ( if you choose 7 inch clip-on monitor)
• 1 X 5 inch Clip-on Mirror Monitor ( if you choose 5 inch clip-on mirror monitor)
• 1 X 4.3 inch Replacement Rear View Mirror Monitor ( if you choose replacement mirror monitor)
• 1 X 10 Meters Extension Cables
• 1 X Power Connection Cable
• All necessary Installation kits
• 1 X Manual
